Rapid transfer port systems for high containment

CLCC Continuous Liner Carrier (with RTP Beta)

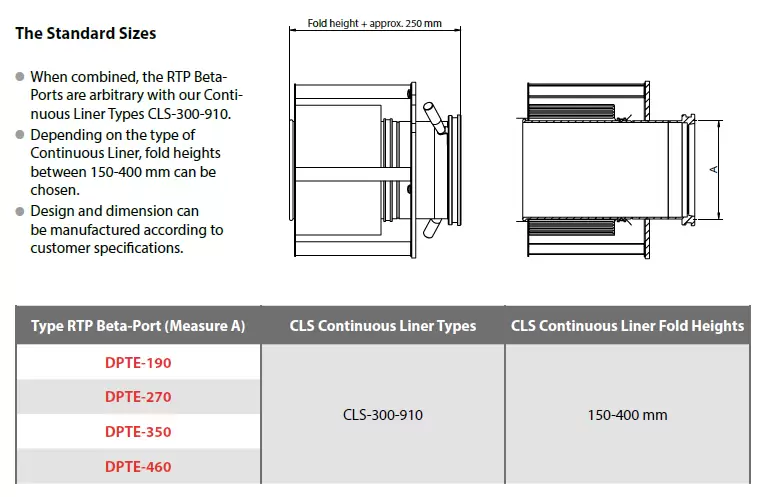

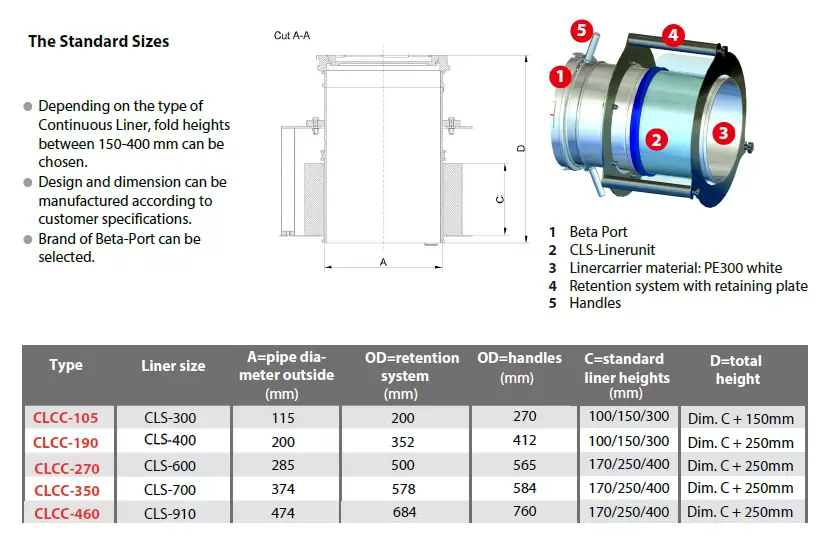

Our Continuous Liner Carrier combined with the RTP Beta-System makes it possible for inward and outward transfers at RTP Alpha interfaces. The Continuous Liner Types CLS-300-910 can be combined with the RTP Beta-Ports 190-460.

The advantages of the CLCC Carrier:

  • Light design through use of plastic
  • Continuous Liners are easily assembled
  • Custom design
  • Tested RTP connection system

Continuous Liner Carriers form the interface between the outlet and the Continuous Liner Package and guarantee appropriate handling and protection. There are specific requirements for each application that we have taken into account when designing our standard Liner Carriers. This way we can achieve the highest possible occupational safety and ensure user-friendliness. In addition to standardized carriers we also design customized solutions specifically to suit your system.

Get to know more in the video

Documents

Back

FAQ - Frequently Asked Questions

In case you missed something

Can Continuous Liners be sterilized?

Yes, by means of gamma or X-ray radiation.

Does Lugaia also offer the Carrier System for the Continuous Liner?

Yes, Liner Carrier systems with various interfaces are possible as well as Liner Carrier systems with RTP Beta ports.

For which containment level can Continuous Liners be used?

OEB5 in combination with our SafeSeal closure system.

What are the advantages of the folded Continuous Liner?

Lugaia’s special axial folding makes it possible to provide maximum film capacity in the smallest possible space. This reduces the frequency of changing the Continuous Liner pack to a minimum, thereby saving you time and money.

What types of film materials for Continuous Liner are available?

An antistatic LDPE with FDA approval or a pure LDPE with FDA EP and USP approval is used as standard. Foil material with conductive properties or customized foils are also available.

Which Continuous Liner sizes are available?

The smallest Continuous Liner has a diameter of 190mm with increasing gradations up to a diameter of 700mm. As a rule of thumb, the size of the Continuous Liner is adapted to the container (drum).
You might also be interested in
Back to overview

Liner Carrier CLS

For Continuous Liner Systems with length up to 80 metres

SafeSeal Crimp

simply ingenious

Continuous Liner

For Primary or Secondary Packaging
