The Lugaia Liner Carrier System
For Continuous Liner System with length up to 80 m
The Liner Carrier System is used wherever Continuous liner is attached to a production plant or an isolator system which needs to be installed as a foil lock. The foil package is placed on the O-ring sealed carrier tube and then pressed off and secured with an O-ring clamping ring. The connection of the Liner Carrier is individually adapted to the interface of the system, for example through TriClamp or flange connection.
Scope of Delivery: Scope of Delivery:
- 1. Liner Carrier
- 2. Linerunit
- 3. O-ring and clamping ring
- 4. SafeSeal Premium Toolset
- 5. SafeSeal crimp
- 6. SafeSeal opener
Various customized liner carriers with integrated washing system Various customized liner carriers with integrated washing system
Special Features: integrated washing hopper & spray ball, nozzles for venting and nitrogen, inflatable seal

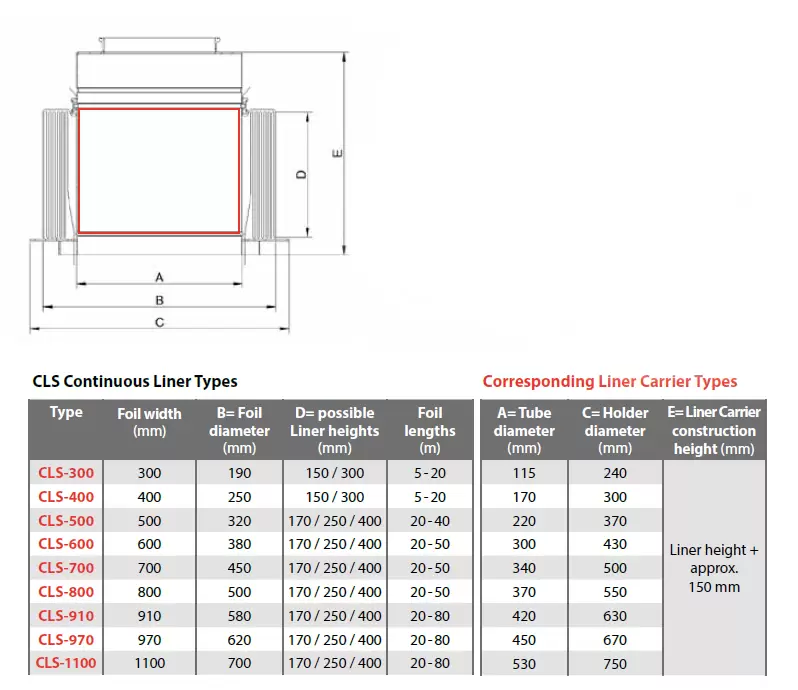

Size table of Continuous Liners and associated Liner Carriers Size table of Continuous Liners and associated Liner Carriers

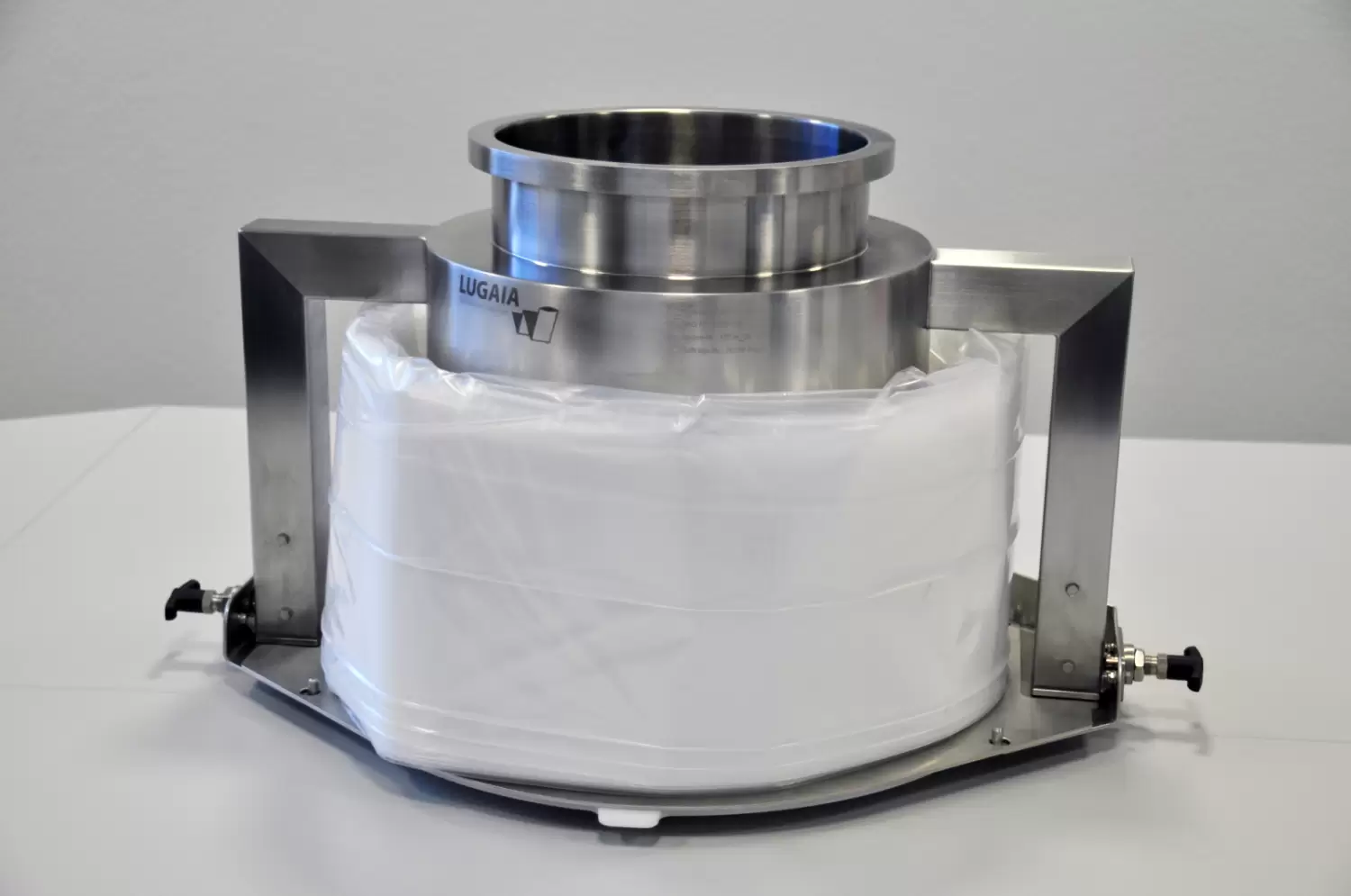

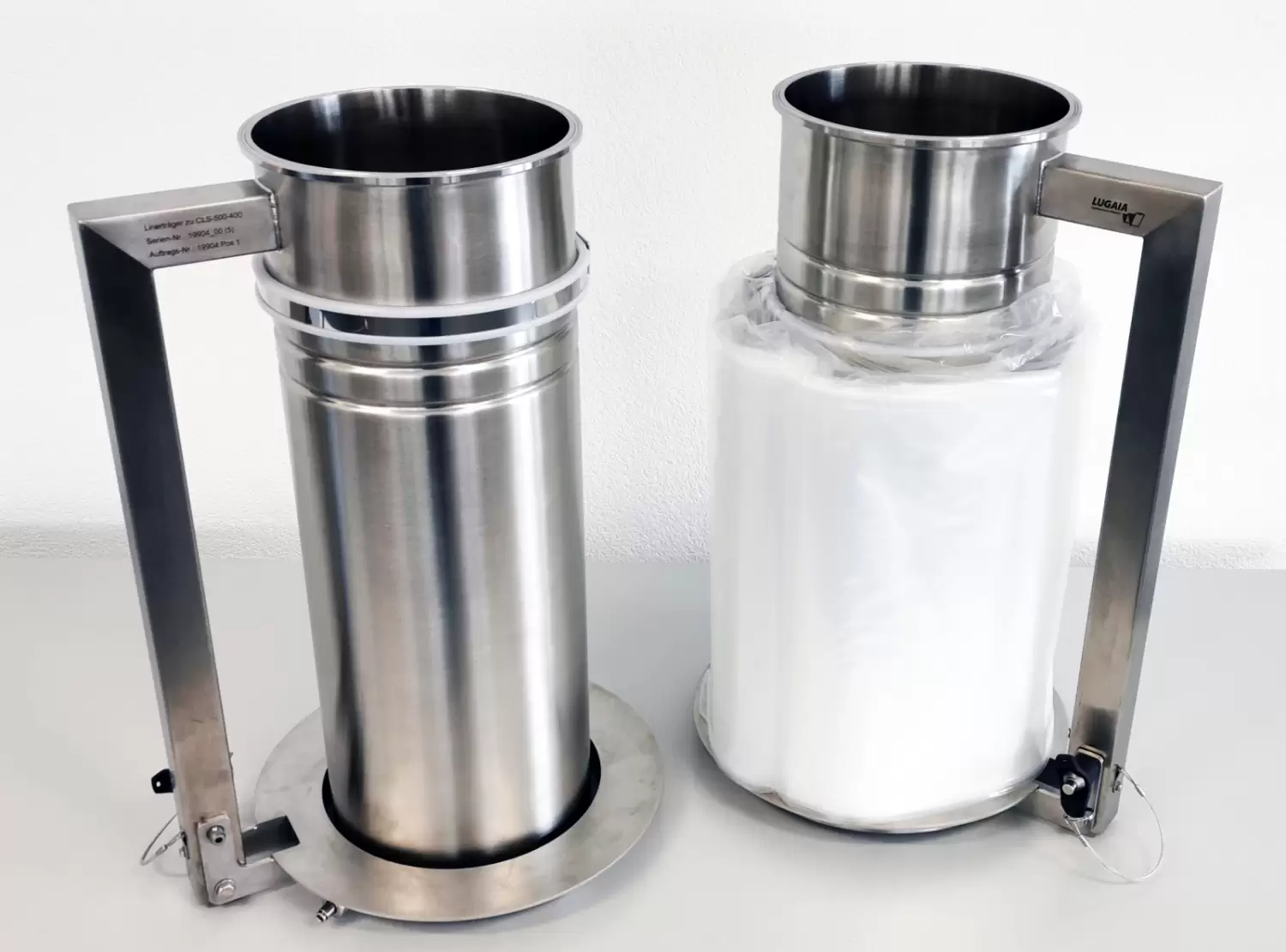

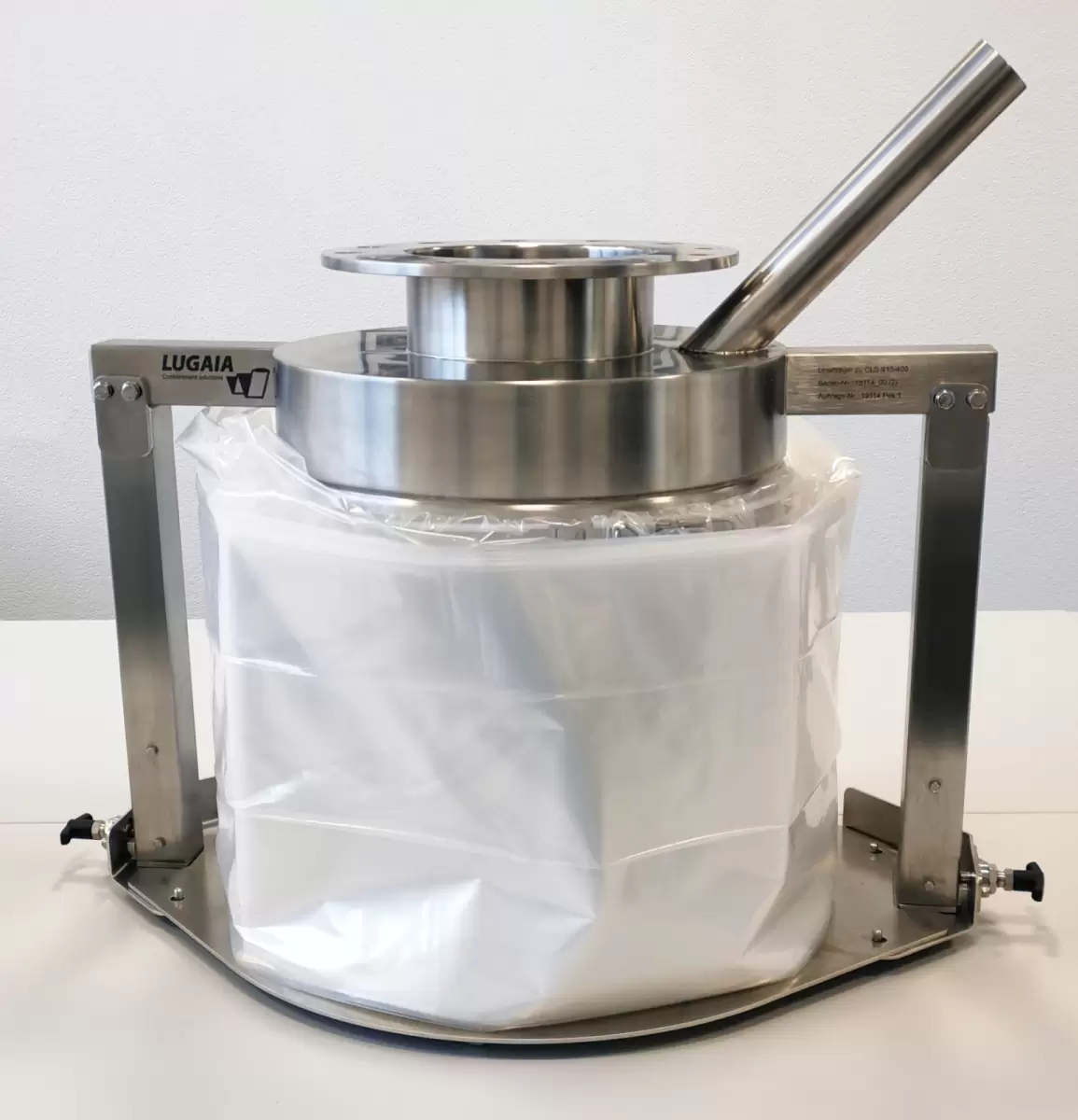

Liner Carrier CLS with mounting aid for easy installation in a vertical design Liner Carrier CLS with mounting aid for easy installation in a vertical design
Equip Liner Carrier CLS Equip Liner Carrier CLS

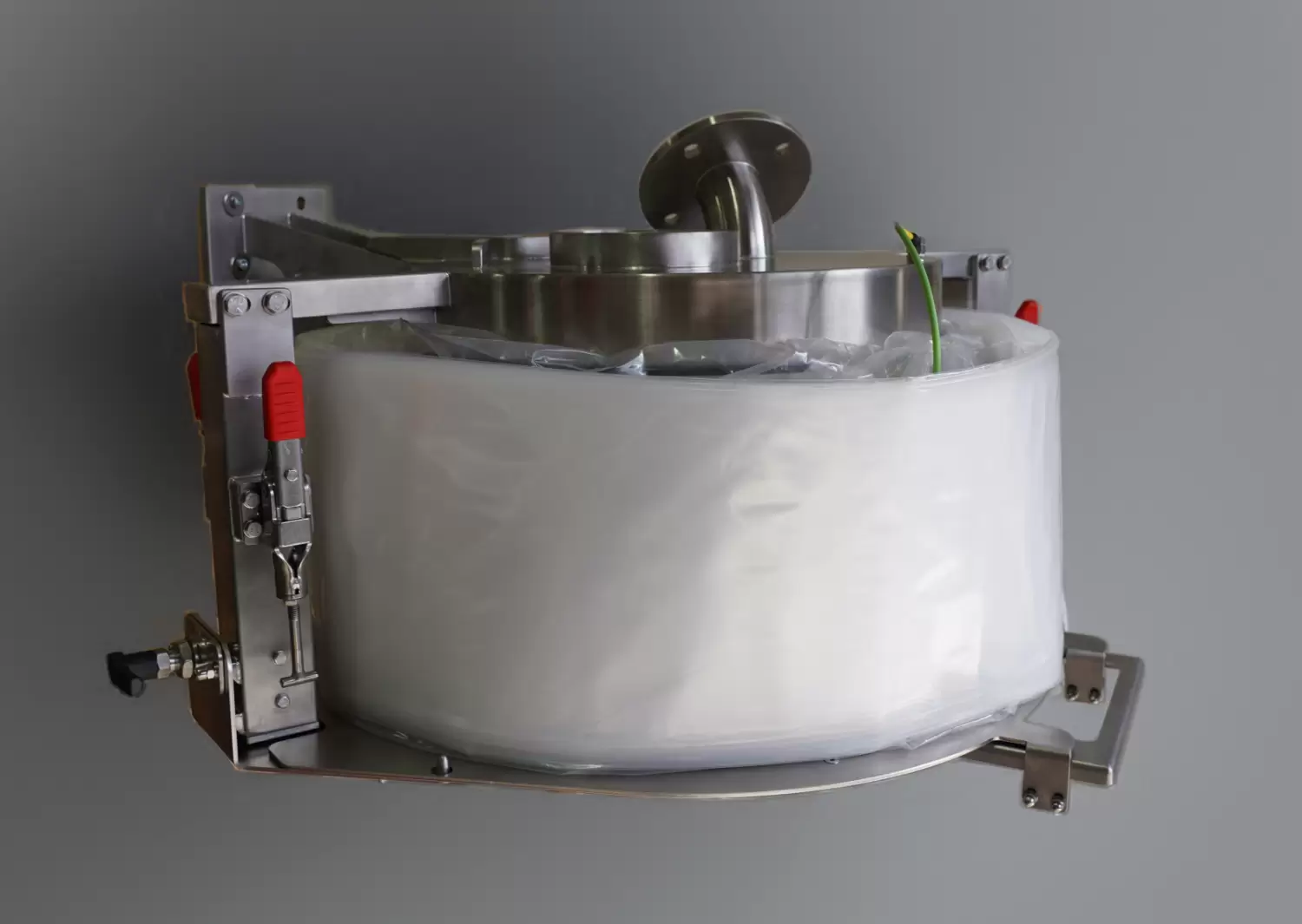

Liner carrier with washing hopper Liner carrier with washing hopper

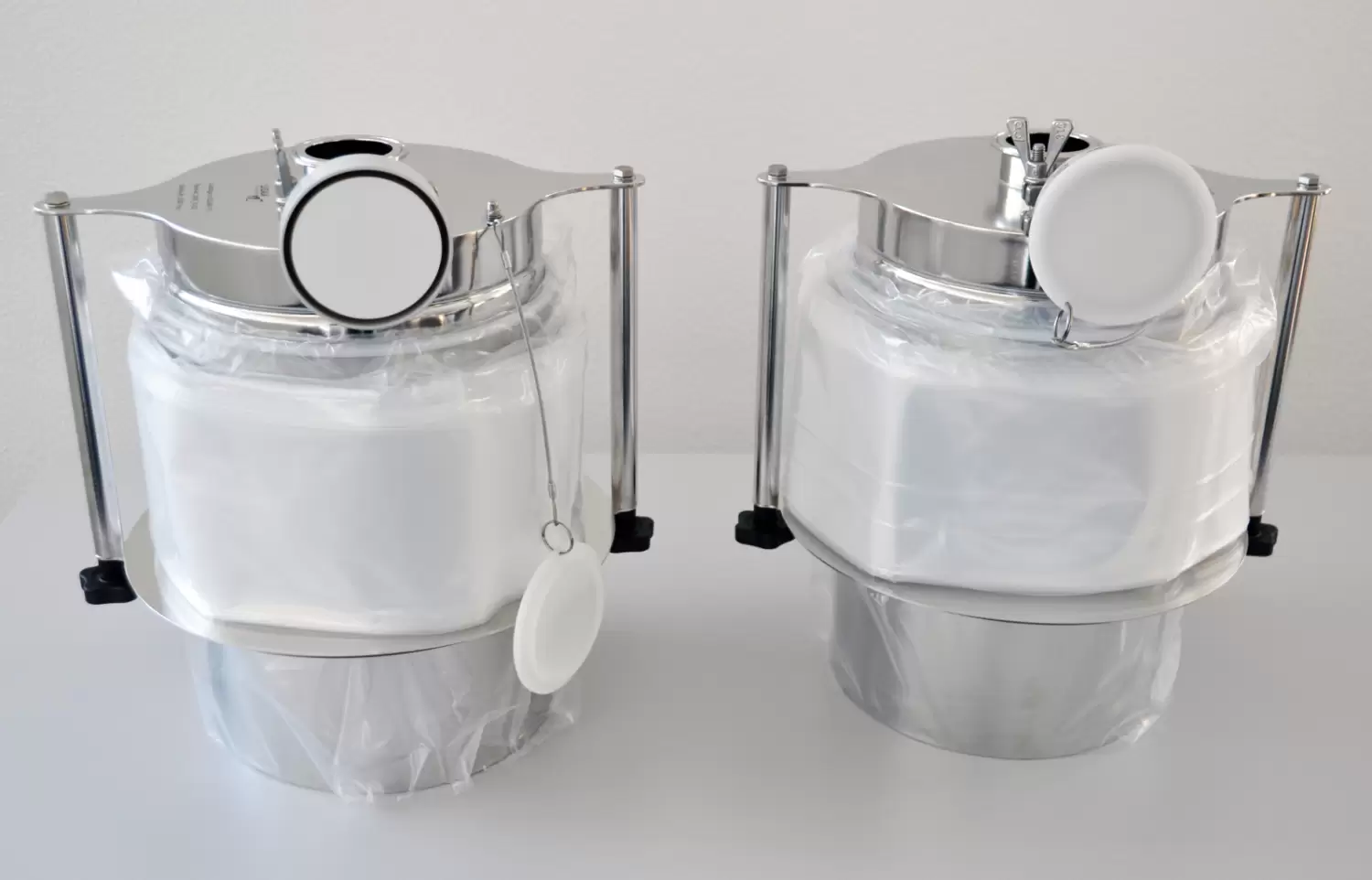

Individually manufactured liner carrier types Individually manufactured liner carrier types

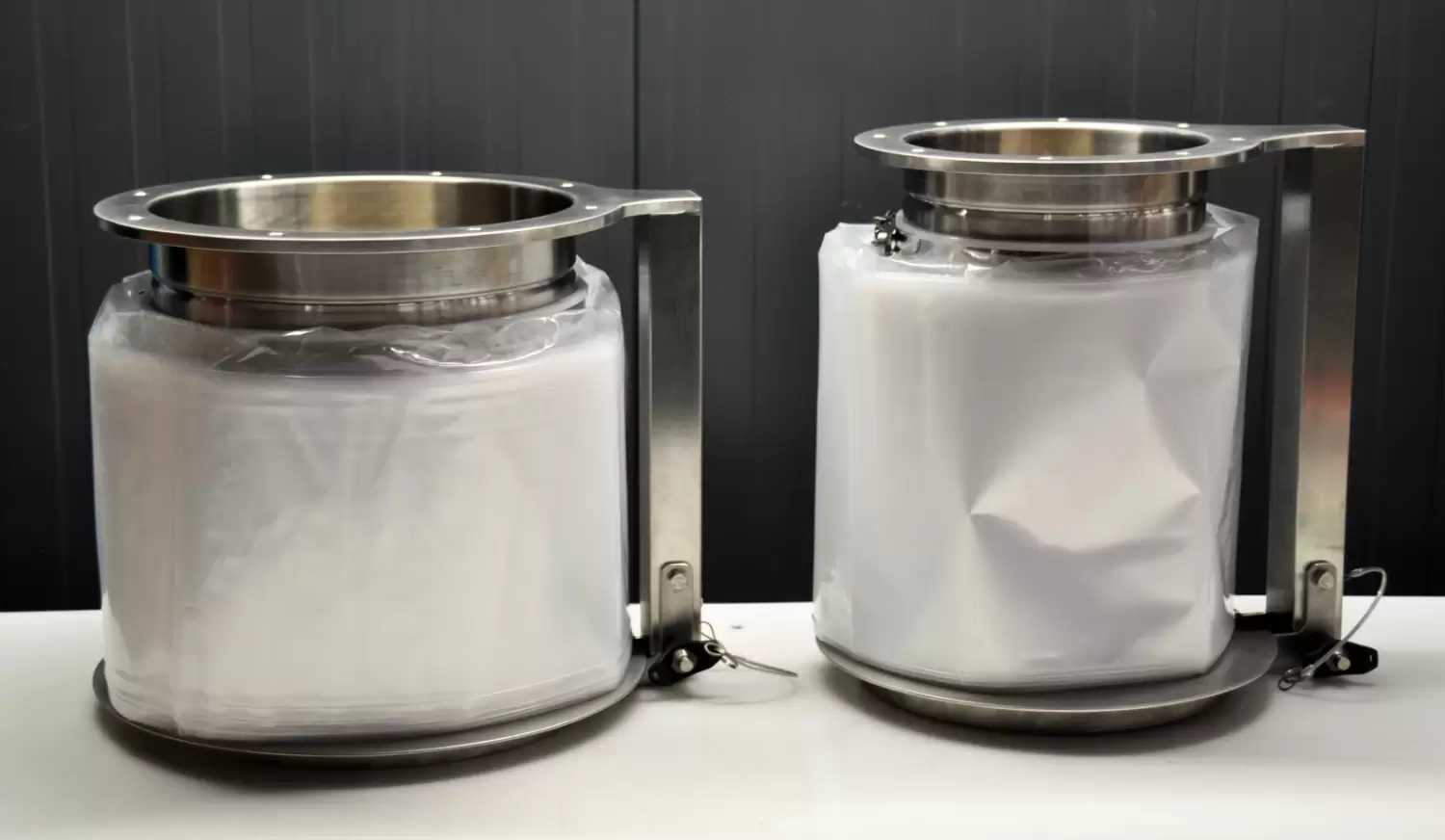

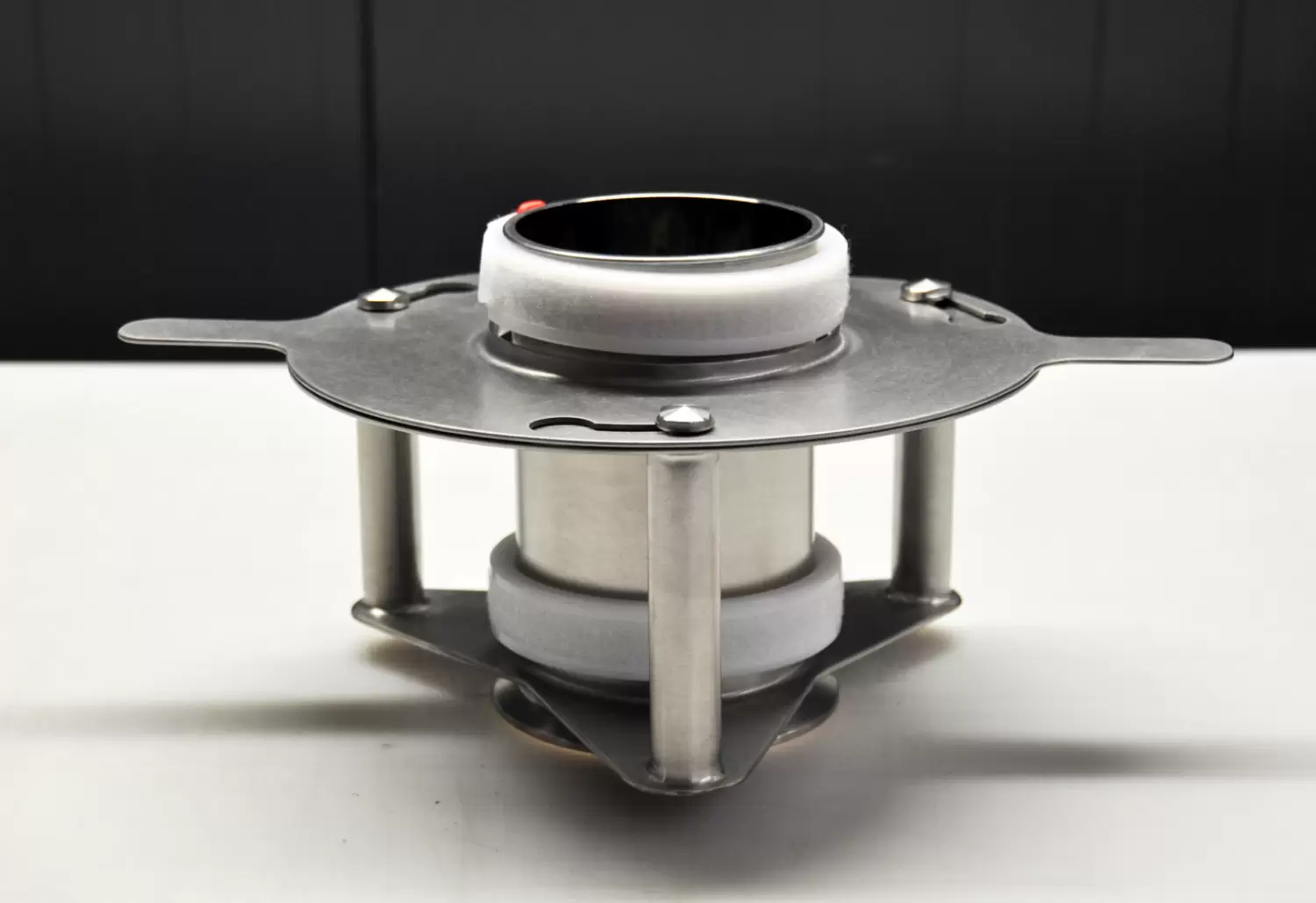

Liner Carrier CLS in the most compact possible design for tight spaces Liner Carrier CLS in the most compact possible design for tight spaces

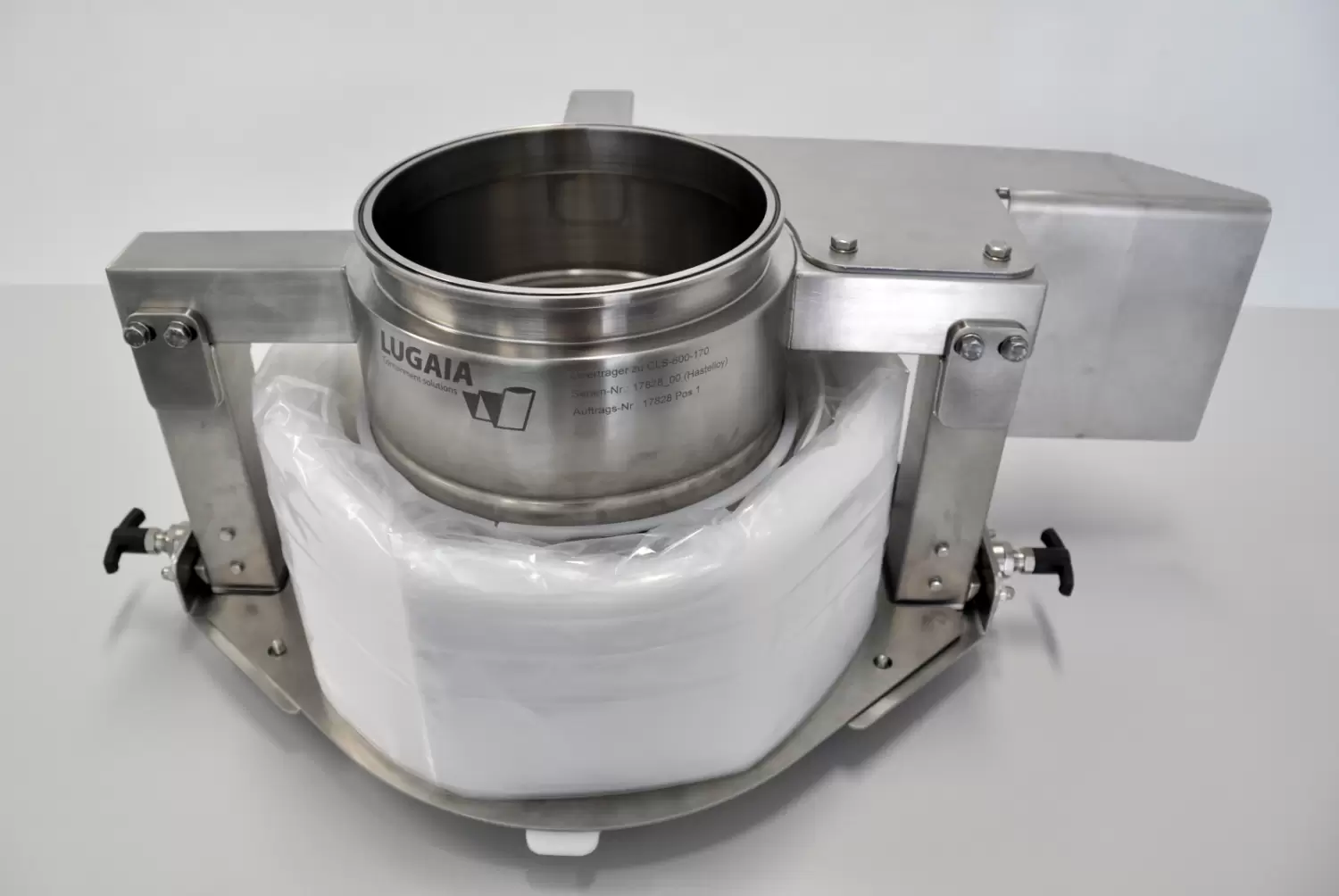

Liner carrier Hastelloy C22 with mounting aid and customer-specific connection Liner carrier Hastelloy C22 with mounting aid and customer-specific connection
Liner carrier with special liner Liner carrier with special liner
The continuous liners are made of a special composite material. The customer needs it to pack wet product. The composite material provides the features to allow moisture from the product to evaporate after packaging.
Liner carrier with mounting aid and inflatable seal (inclusive holder for control of the inflatable seal) Liner carrier with mounting aid and inflatable seal (inclusive holder for control of the inflatable seal)
Available in Hastelloy C22 or stainless steel 316L
Customized liner carrier with dedusting connection Customized liner carrier with dedusting connection

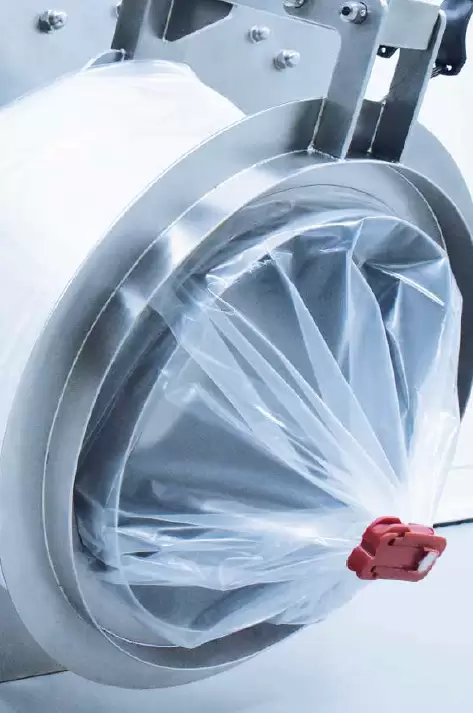

Continuous liner system as a clean room lock Continuous liner system as a clean room lock

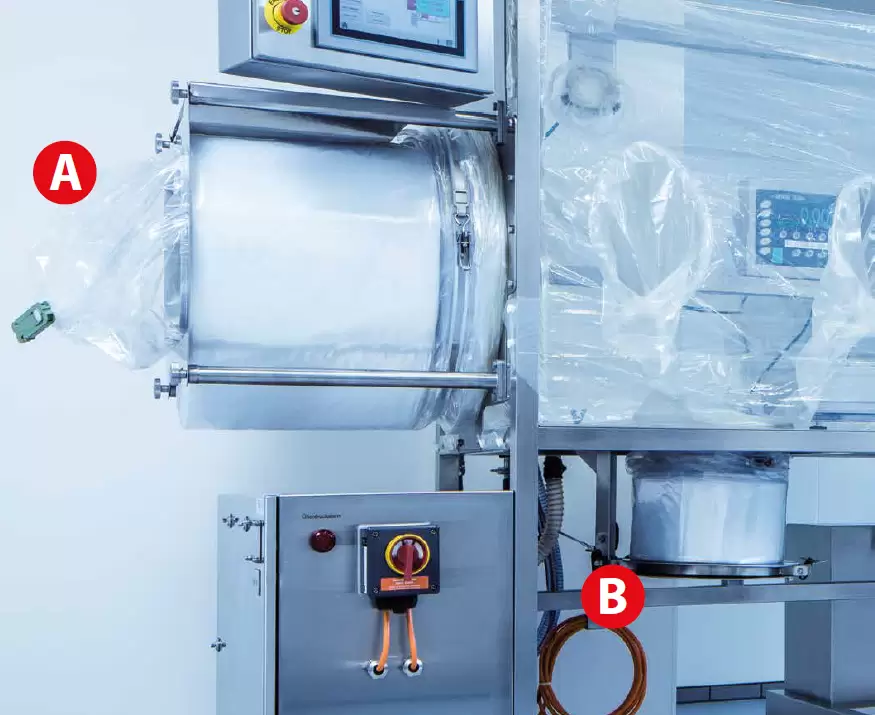

Application examples Application examples
- A: CLS horizontal: lock
- B: CLS vertical: Product lock
Application examples Application examples
CLS wall installation
Continuous Liner Carriers form the interface between the outlet and the Continuous Liner Package and guarantee appropriate handling and protection. There are specific requirements for each application that we have taken into account when designing our standard Liner Carriers. This way we can achieve the highest possible occupational safety and ensure user-friendliness. In addition to standardized carriers we also design customized solutions specifically to suit your system.
Application areas:
Discharge facilities
- Discharching of API (Active Pharmaceutical Ingredients), toxic and highly reactive products
Isolator and cleanroom applications
- Primarily medium pack
- Waste-port
- Product transfer
- Sampling
