SafeSeal Crimp

Patented

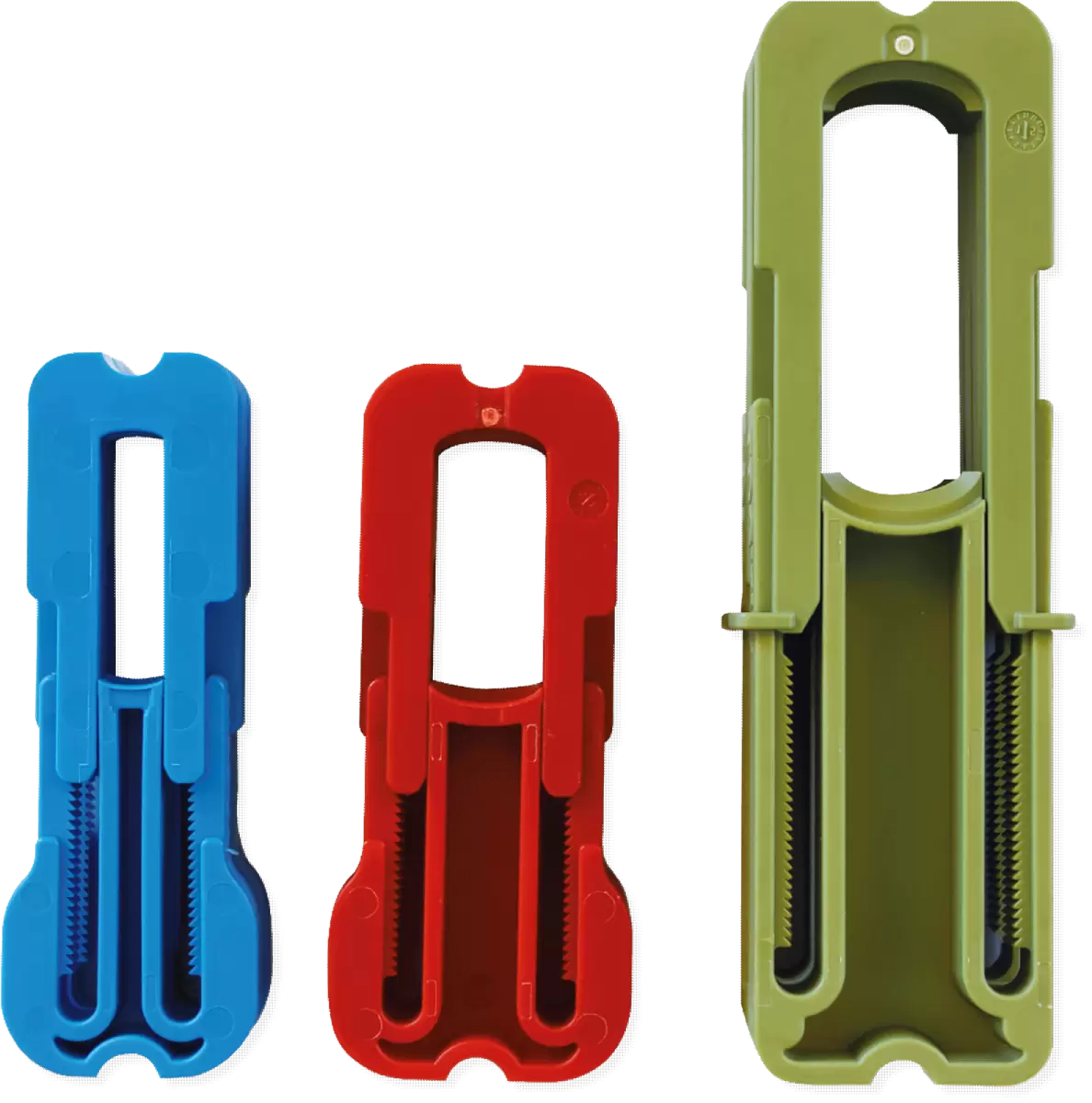

The Lugaia SafeSeal Crimp in 3 different sizes: S (blue), M (red), L (green)

The advantages of the SafeSeal Closure System:

  • Easy handling
  • High occupational safety
  • Universal usability
  • Low investment costs
  • High quality
  • Axial closure mechanism
  • Guaranteed OEB 5 (<1μg / m3) Containment-Level
  • 3 different sizes: S (blue), M (red), L (green)
  • Can be expanded with a protective cap and hanger

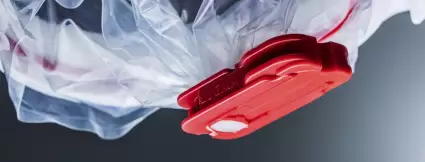

The SafeSeal Crimp is manually pulled over the bag and compressed with special Crimping pliers. The crimp can then be separated using a cutting tool. Crucial for the closure size is the foil size. The SafeSeal Closure system guarantees Containment-Level OEB 5 (<1μg / m³) in action with Lugaia Continuous Liners and thus forms the spearhead of the manual lock systems. Through the deployment of the SafeSeal Opener, the closure can be removed again without any additional cutting processes. The entire closure system consists of SafeSeal Crimps, a crimp and a cutting tool and it can be completed with a protective cap and hanger.

Learn more about the handling of the SafeSeal Crimp

Documents

Back

FAQ - Frequently Asked Questions

In case you missed something

Are the SafeSeal Crimps liquid or gas-tight?

No, the Crimps are powder-tight according to Containment Level OEB5.

Can the pneumatic tool be integrated into existing systems?

Yes, the mounting of the pneumatic tool is designed in a customer-specific manner.

Can the SafeSeal Toolset be used for all closure sizes?

Yes, can be used for sizes S, M, and L.

Can the same tool set be used for all crimp sizes?

Yes, for size L you only have to remove the spacer bolt from the press tool. The cutting tool is the same for all of them. Both sets can be used for all sizes of SafeSeal closures.

Do you need an additional tool to close the cable tie?

A standard cable tie tool can be used here.

For which applications is the SafeSeal DuoPro particularly suitable?

The SafeSeal DuoPro is ideal for processes that require fast, safe, and repetitive sealing, such as in containment liner operations or frequent product changeovers. Its 2-in-1 design makes the workflow more efficient and ergonomic.

For which closure sizes can the pneumatic tool be used?

Available for size M & L

For which containment level can SafeSeal closure system be used?

OEB5 in combination with our film systems.

For which contamination level or OEB (Occupational Exposure Band) is the system designed?

The system, in combination with suitable foil or liner systems, guarantees a containment level of OEB 5 (< 1 µg/m³).

For which contamination level or OEB (Occupational Exposure Band) is the system designed? (Kopie)

The main difference lies in the functionality: The SafeSeal DuoPro combines two process steps – crimping and cutting – in one single tool. This allows safe sealing and simultaneous separation of a liner or bag in one operation. The SafeSeal Toolset, on the other hand, includes separate tools for crimping and cutting, offering greater flexibility but requiring tool changes between steps.
